CBB21 金属化聚丙烯薄膜电容器
|
通用型，采用金属化聚丙烯薄膜无感式卷绕、阻燃环氧粉末包封、镀锡铜线引出，具有防潮能力强、自愈性好、高绝缘、低损耗、低温升等特点。
|
|

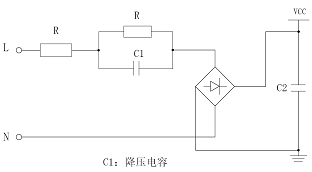

典型线路图：
|
|
引用标准
|
GB10190﹑IEC 60384-16
|
|
气候类别
|
40/85/21
|
|
额定电压
|
250VDC～630VDC
|
|
容量范围
|
0.1μF～10μF
|
|
容量偏差
|
±5%(J)、±10%(K)
|
|
耐电压
|
极间
|
1.6*UR(VDC)/10s
|
|
绝缘电阻(20℃)
|
|
≥30000MΩ, CR≤0.33μF (100Vdc,60s)
≥7500S, CR >0.33μF (100Vdc,60s)
|
|
极壳
|
≥100000MΩ ( 100Vdc,60s)
|
|
损耗角正切(20℃)
|
≤0.002 (1KHz )
|
|

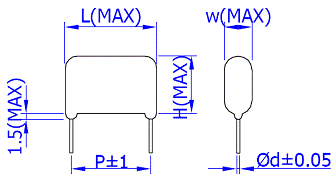

常用规格 （Unit：mm）
|
|
Rated Cap.
|
250/275VDC
|
400VDC
|
630VDC
|
|
L
|
W
|
H
|
P
|
Фd
|
L
|
W
|
H
|
P
|
Фd
|
L
|
W
|
H
|
P
|
Фd
|
|
0.10μF
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
|
0.22μF
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
9.5
|
15.5
|
15.0
|
0.8
|
|
0.33μF
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
7.5
|
14
|
15.0
|
0.8
|
23
|
8.5
|
15
|
20.0
|
0.8
|
|
0.47μF
|
23
|
7.0
|
14.5
|
20.0
|
0.8
|
23
|
7.0
|
14.5
|
20.0
|
0.8
|
23
|
9.5
|
17.5
|
20.0
|
0.8
|
|
0.68μF
|
23
|
8.0
|
16
|
20.0
|
0.8
|
23
|
8.0
|
16
|
20.0
|
0.8
|
23
|
11.5
|
19
|
20.0
|
0.8
|
|
0.82μF
|
23
|
7.0
|
14.5
|
20.0
|
0.8
|
23
|
9.0
|
16.5
|
20.0
|
0.8
|
23
|
12.5
|
20
|
20.0
|
0.8
|
|
1.0μF
|
24
|
7.5
|
15.5
|
20.0
|
0.8
|
24
|
10
|
17.5
|
20.0
|
0.8
|
24
|
14
|
21.5
|
20.0
|
0.8
|
|
1.2μF
|
24
|
8.5
|
16.0
|
20.0
|
0.8
|
24
|
11
|
18.5
|
20.0
|
0.8
|
29.5
|
13
|
21
|
26.0
|
0.8
|
|
1.5μF
|
24
|
9.5
|
17.0
|
20.0
|
0.8
|
24
|
12
|
20
|
20.0
|
0.8
|
29.5
|
14.5
|
22
|
26.0
|
0.8
|
|
2.0μF
|
24
|
10.5
|
18.5
|
20.0
|
0.8
|
24
|
14
|
22
|
20.0
|
0.8
|
29.5
|
17
|
25
|
26.0
|
0.8
|
|
2.2μF
|
24
|
11.5
|
19.0
|
20.0
|
0.8
|
29.5
|
12.5
|
20
|
26.0
|
0.8
|
29.5
|
18
|
25.5
|
26.0
|
0.8
|
|
2.5μF
|
24
|
12
|
20
|
20.0
|
0.8
|
29.5
|
13
|
21
|
26.0
|
0.8
|
29.5
|
19
|
27
|
26.0
|
0.8
|
|
3.0μF
|
24
|
13.5
|
21
|
20.0
|
0.8
|
29.5
|
14.5
|
22
|
26.0
|
0.8
|
35
|
18.5
|
26.5
|
31.0
|
0.8
|
|
3.3μF
|
24
|
14
|
21.5
|
20.0
|
0.8
|
29.5
|
15
|
23
|
26.0
|
0.8
|
35
|
19.5
|
27.5
|
31.0
|
0.8
|
