CBB81 金属化聚丙烯膜、箔电容器
|
采用聚丙烯膜和铝箔无感式卷绕、阻燃环氧粉末包封、 镀锡铜线引出，具有高耐压、高绝缘、耐冲击、低损耗、低温升等特点。
适用于高压、脉冲、点火、谐振电路中。
|
|

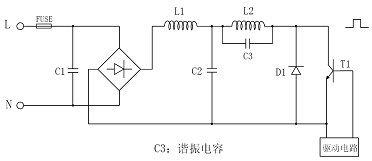

典型线路图：
|
|
引用标准
|
GB/T14579﹑IEC 60384-17
|
|
气候类别
|
40/85/21
|
|
额定电压
|
1000VDC～3000VDC
|
|
容量范围
|
0.0022μF～1μF
|
|
容量偏差
|
±5%(J)、±10%(K)
|
|
耐电压
|
极间
|
2.5*UR(VDC)/10s
|
|
绝缘电阻(20℃)
|
极间
|
≥30000MΩ, CR≤0.33μF (100Vdc,60s)
≥7500S, CR >0.33μF (100Vdc,60s)
|
|
极壳
|
≥100000MΩ ( 100Vdc,60s)
|
|
损耗角正切 (20℃)
|
≤0.001 (10KHz )
|
|

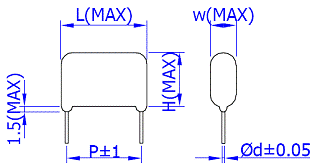

常用规格 （Unit：mm）
|
|
Rated Cap.
|
1000VDC
|
1600VDC
|
2000VDC
|
|
L
|
W
|
H
|
P
|
Фd
|
L
|
W
|
H
|
P
|
Фd
|
L
|
W
|
H
|
P
|
Фd
|
|
0.0022μF
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
7.0
|
12.5
|
15.0
|
0.8
|
|
0.0047μF
|
18
|
9.0
|
14.5
|
15.0
|
0.8
|
18
|
6.5
|
12.5
|
15.0
|
0.8
|
18
|
9.5
|
15
|
15.0
|
0.8
|
|
0.0056μF
|
18
|
8.5
|
14.0
|
15.0
|
0.8
|
18
|
8.5
|
14.0
|
15.0
|
0.8
|
25
|
8.0
|
13.5
|
22.0
|
0.8
|
|
0.0068μF
|
18
|
7.5
|
13.5
|
15.0
|
0.8
|
18
|
7.5
|
13.5
|
15.0
|
0.8
|
25
|
8.5
|
14.0
|
22.0
|
0.8
|
|
0.0082μF
|
18
|
8.5
|
14.0
|
15.0
|
0.8
|
18
|
8.5
|
14.0
|
15.0
|
0.8
|
25
|
9.0
|
15.0
|
22.0
|
0.8
|
|
0.010μF
|
18
|
7.0
|
12.0
|
15.0
|
0.8
|
18
|
8.0
|
12.0
|
15.0
|
0.8
|
25
|
11
|
16.5
|
22.0
|
0.8
|
|
0.015μF
|
18
|
10
|
15.5
|
15.0
|
0.8
|
18
|
10
|
15.5
|
15.0
|
0.8
|
25
|
8.5
|
14.0
|
22.0
|
0.8
|
|
0.020μF
|
18
|
10
|
17.0
|
15.0
|
0.8
|
18
|
10
|
17.0
|
15.0
|
0.8
|
25
|
9.0
|
16.0
|
22.0
|
0.8
|
|
0.022μF
|
18
|
10.5
|
17.5
|
15.0
|
0.8
|
18
|
10.5
|
17.5
|
15.0
|
0.8
|
25
|
10
|
15.5
|
22.0
|
0.8
|
|
0.024μF
|
18
|
10.5
|
18.0
|
15.0
|
0.8
|
18
|
10.5
|
18.0
|
15.0
|
0.8
|
25
|
9.5
|
17
|
22.0
|
0.8
|
|
0.027μF
|
25
|
8.0
|
15.5
|
22.0
|
0.8
|
25
|
8.0
|
15.5
|
22.0
|
0.8
|
25
|
10
|
17.5
|
22.0
|
0.8
|
|
0.030μF
|
25
|
8.5
|
15.5
|
22.0
|
0.8
|
25
|
8.5
|
15.5
|
22.0
|
0.8
|
25
|
11
|
18.5
|
22.0
|
0.8
|
|
0.039μF
|
25
|
9.5
|
16.5
|
22.0
|
0.8
|
25
|
9.5
|
16.5
|
22.0
|
0.8
|
25
|
12.5
|
20
|
22.0
|
0.8
|
|
0.10μF
|
34
|
11.5
|
19.0
|
31.0
|
0.8
|
34
|
11.5
|
19.0
|
31.0
|
0.8
|
34
|
21.5
|
29
|
31.0
|
0.8
|
